Intellitec 00-00622-110 Programmable Multiplex Control Input Module

Intellitec 00-00622-110 Programmable Multiplex Control Input Module

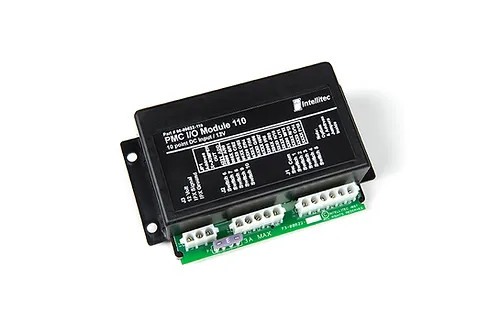

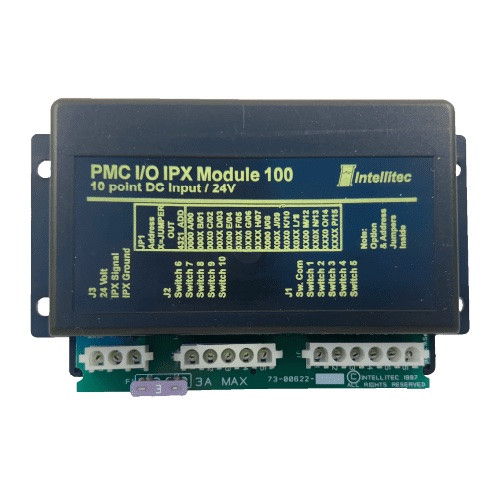

PMC Input Modules 100 and 110 are members of Intellitec’s Programmable Multiplex Control family. They work in combination with the PMC CPU and other standard semi-custom or custom I/O modules.There are ten input connections for rocker, limit, or sensor switches.Each individual input can be configured as either a switch to ground, or a switch to battery. All input information is directly communicated to the CPU via the PMC communications link. The CPU utilizes this information to control other PMC output modules. All of the output harnesses are connected with AMP Mate-N-Lok connectors to reduce installation time and errors. The approximate module dimensions are 6.375″ X 3.750″ X 1.875″ (16.2mm X 9.5mm X 4.8mm).The module should be installed in a protected environment inside of the vehicle.
