Flight Systems 72-1500L-00 Kohler MPAC 1200 and 1500 Replacement GM46324 GM46715

Flight Systems 72-1500L-00 Kohler MPAC 1200 and 1500 Replacement GM46324 GM46715

Note; Controler image for identification only, not included
Identify Panel Version Below For this Board
Click here for other versions

This replacement is for MPAC controllers that have the USB port on the SIDE of the case. Please ensure you are buying the correct version using the pictures below.

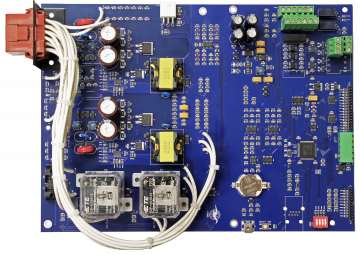

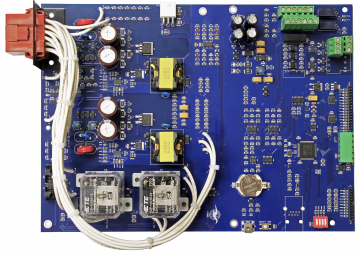

Flight Systems is proud to offer this drop-in replacement for the Kohler MPAC 1200 and 1500 ATS controller board.
This board replaces part numbers: GM46324, GM46715, GM46975 (power board only), GM57131 (power board).
Can not replace GM46975 (logic board) or GM93609, which has a different connector and off-board transfer relays.

The Flight Systems Replacement for the Kohler MPAC 1200 and 1500 Board features:

• Same footprint as the original board. Easily installs in your existing plastic case.
• Exclusive feature: Set up by part number! Enter the part number of the transfer switch to automatically set defaults.
• Improved single-board design installs in place of the original two-board design. No more unreliable ribbon cable!
• 16 programmable excercise cycles that will retain their settings even if completely powered down.
• Completely configurable from front panel. No software required.
• Compatible with standard, programmed, and closed transition.
• Communicates using MODBUS protocol for remote monitoring.
• Optional accessory boards also available:
