Onan Replacement 305-0851 Generator Voltage Regulator 305

Replacement Onan Generator Voltage Regulator

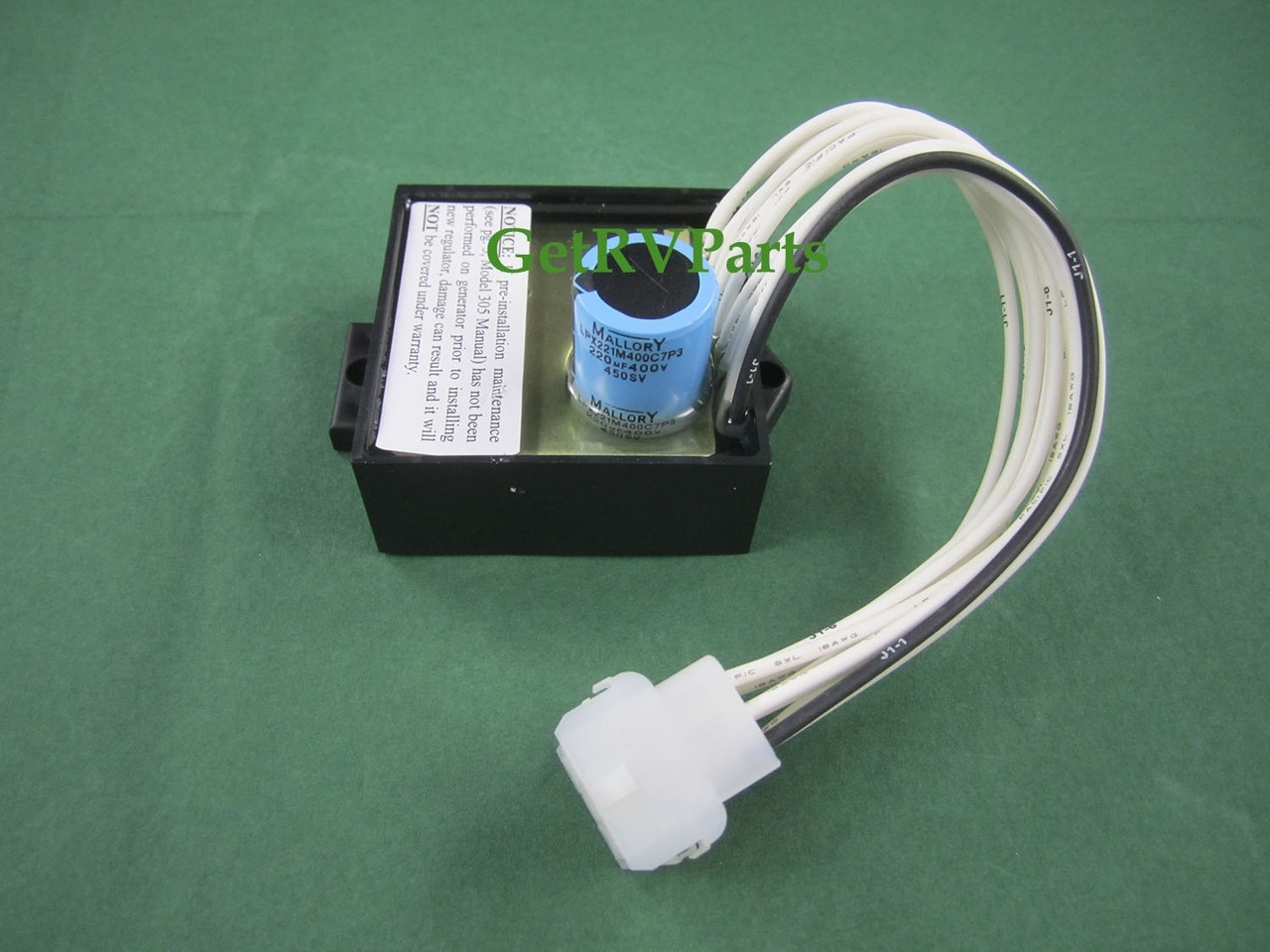

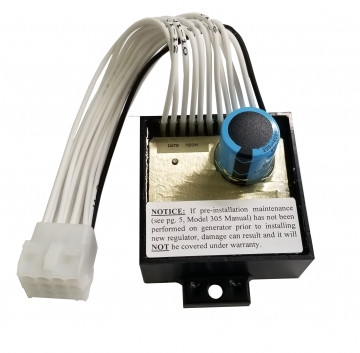

Flight Systems part number Model 305 is an improved, direct replacement for the voltage regulator used in several models of Onan Emerald, Marquis, and Microlite Series Gen Sets.

Features include improved circuit design, rugged weather-proof packaging and better heat dissipation (through gel encapsulation and larger internal heat sink). Unlike the epoxy encased originals, the Model 305 can be rebuilt.

It is built in the USA and backed by a 2-year Warranty.

This regulator replaces the following ONAN part numbers: 305-0809-01, 305-0851, 305-0782-01, 305-0830-01, 305-0826* (*We also offer a metal-case "direct fit" replacement for Onan part number 305-0826 that mounts exactly the same as the original. Our standard Model 305 will function correctly in place of the 305-0826, but some mounting modification may be necessary).

These regulators were used in the following Onan Gen Set Models:

305-0809-01 used in Emerald RV Gen Set Models:

• BGE: Spec H thru N
• BGEL: Spec E thru N

305-0782-01 used in Emerald Gen Set Models:

• BGE: Spec F & G
• NHE: D thru G
• NHEL: Spec D, E & G

305-0851 used in Microlite Gen Set Models:

• KY: Spec A thru H
