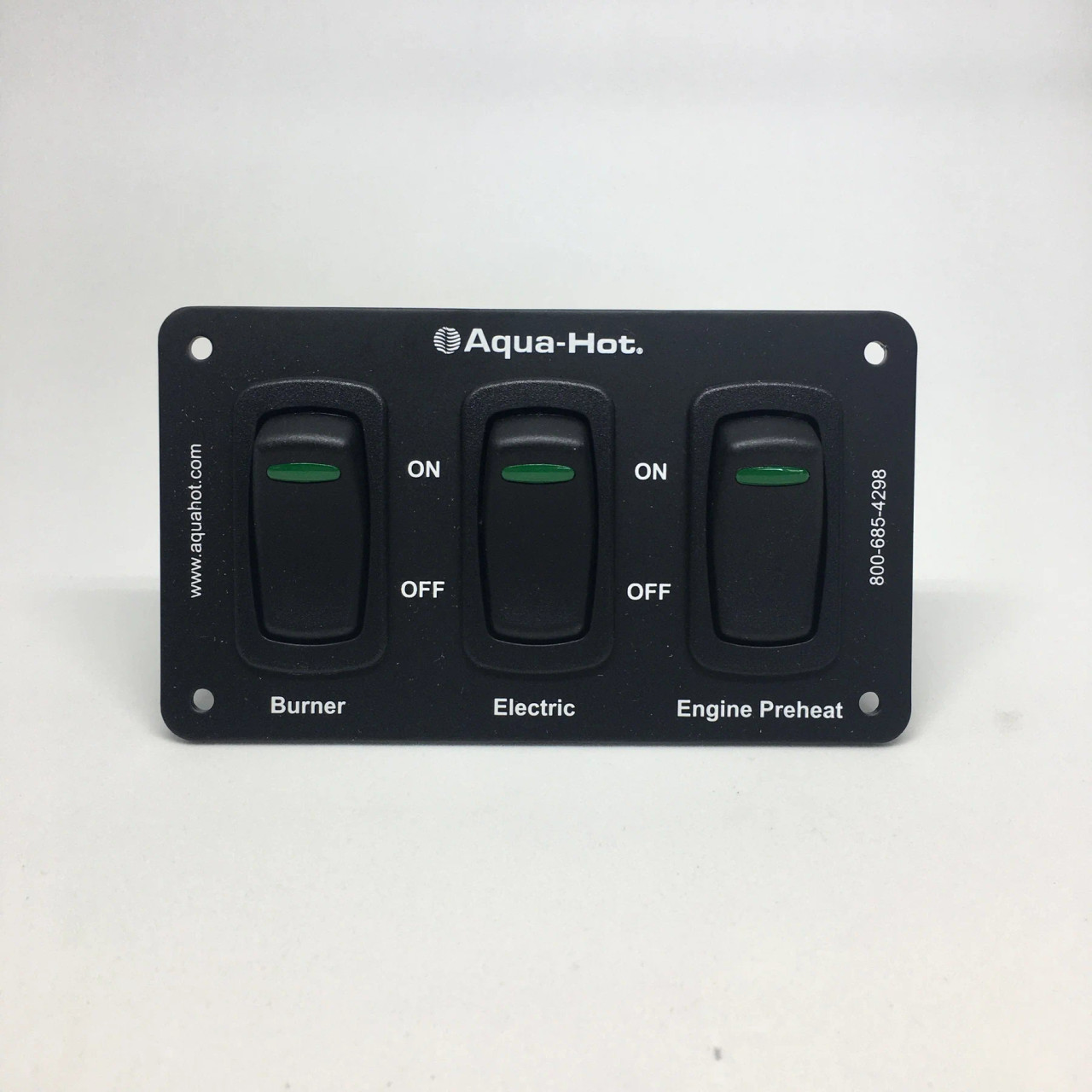

Aqua Hot ELE-000-509 3 Position Switch Assembly Panel

Aqua Hot ELE-000-509 3 Position Switch Assembly Panel

This is the newest version of the switch panel. ELE-000-509.

The cover on the switch panel is approximately 5" wide x 2 7/8" tall

Some rewiring is needed. A basic knowledge of DC electronics and the ability to follow printed directions are needed.

The cutout in the cabinet will probably have to be enlarged by 3/8" in width and 1/4" in height. Verify that switch will fit into the hole in cabinet prior to installing wires. You need at least 2 1/2" in depth, 3" is much more comfortable.

Replacement Switch for ELX-200-350
